Double Layers Blown Film Extrusion

Double Layers Blown Film Extrusion
The technique of double layer blown film extrusion is employed to create laminated plastic films from various materials, including low density polyethylene (LDPE), high density polyethylene (HDPE), and linear low density polyethylene (LLDPE). These films find extensive application in the packaging of liquids, printed materials, export items, and industrial products. The implementation of double layer co-extrusion for laminated films greatly enhances the strength and longevity of packaging for liquids.

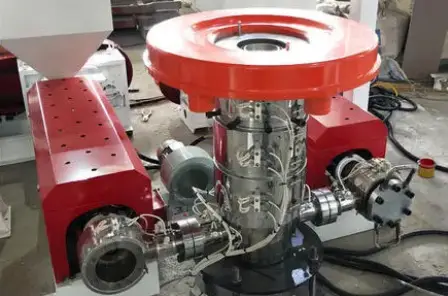

double layers blown film extrusion

Model	2SJ-G50	2SJ-G55	2SJ-G60
screw	Two screws	Two screws	Two screws
Screw diameter	ф50×2	ф55×2	Ф60×2
Tube film width(mm)	800	1000	1200
Open Film width(mm)	1600	2000	2400
film thickness (One-surface)	0.015-0.10mm	0.015-0.10mm	0.015-0.10mm
Air Ring	Double Lip Air ring
Material	LDPE,HDPE,LLDPE,EVA,MLDPE,recycle material
Film Color	Transparent,Black,Red,White,blue…bag color changed by masterbatch
Usage	packing film,table cover,shrink film,plastic bag,trash bag,water bag
L/D	28：1	28：1	28：1
Max. Output(kg/h)	40	65	80
Power of main motor(kw)	11×2	15×2	18.5×2
Heating Power(kw)	26	30	42
Measurement (m)	4.2×2.2×4	4.6×2.4×4.6	5×2.8×5
Weight(T)	4	5	6
Power Voltage	220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Nigeria 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
Material Core Diameter	76mm
Machine Working Time	24 hours * 7 days
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

Shipment

shipment of plastic bag machine

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).



instalment service

install machines in customer factory

Machine parts supplier

Our Main parts cooperator as following brand,but standard parts all made from China.

Material supplier

How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
