Slitting Machine
slitting machine suit to slit big roll plastic film into small roll plastic film,suit to slit plastic film,paper roll,aluminum foil,stretch film.
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
Features of the Slitting Machine:
The slitting machine is an excellent device designed for cutting a wide range of rolled materials, such as printing laminating film, aluminum film, BOPP film, PET film, and PVC film, among others. This equipment is equipped with an inverter, magnetic powder tension control, a PLC, and a metering device for accurate accounting.
Key Features of a Slitting Machine:
– Designed to slit various materials including paper, LDPE film, HDPE film, LLDPE film, BOPP film, PP film, and PET film.
– Incorporates edge position control and automatic tension regulation to ensure accuracy.
– Features a meter account function that allows for automatic machine shutdown.
– Supports power supply options of 220V, 380V, 440V, and 480V.
– Offers after-sales support, including on-site installation carried out by engineers and training assistance.
– Customization options and OEM designs are available to enhance customer satisfaction with the Plastic Film Slitting Machine.
Main Technical Parameter：
| Model | WFQ–B1100 | WFQ–B 1300 | WFQ–B 1600 |
| Max.width of unwinding | 1100mm | 1300mm | 1600mm |
| Max.diameter of unwinding | Φ1400mm | Φ1400mm | Φ1400mm |
| Min.width of slitting | 20mm | 20mm | 20mm |
| Max.diameter of rewinding | Φ500mm | Φ500mm | Φ500mm |
| Max.Speed | 200m/min | 200m/min | 200m/min |
| Precision of slitting | ±0.2mm | ±0.2mm | ±0.2mm |
| Total Power | 7kw | 7kw | 8.5kw |
| Suitable power supply | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Weight(approx) | 2100kg | 2300kg | 2600kg |
| Overall dimension(LxWxH) | 2850x2150x1350(mm) | 2850x2350x1350(mm) | 2850x2650x1350(mm) |
| Material | Paper,HDPE film, LDPE film, LLDPE film,PET film,BOPP film,OPP film,CPP film | ||
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Nigeria 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | ||
| Material Core Diamater | 76mm(3 inch) | ||
| Machine Working Time | 24 hours * 7 days | ||
| Warranty | 1 year | ||
| Technical Assistance | Engineers available to service machinery overseas | ||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

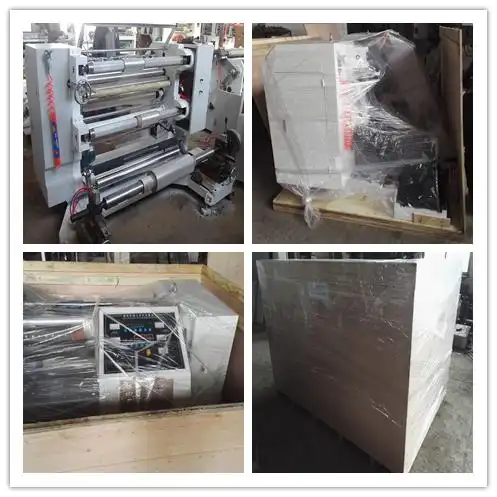

If you only buy one machine,we will pack machine with wooden pack,and loading container withLess Than Container Load（LCL）. If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load). Our Main parts cooperator as following brand,but standard parts all made from China. How To Find Polyethelene For Blown Film Extrusion. Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).

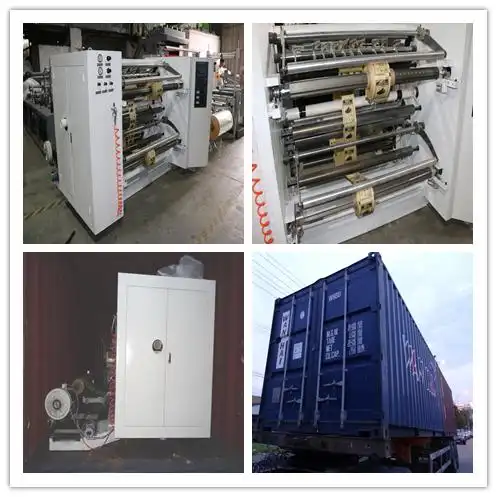

Shipment
shipment of plastic bag machine
instalment service
install machines in customer factory
Machine parts supplier
Material supplier
Extrusion Film Extrusion use Polyethelene,such as
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
