Three Layers Air Bubble Film Machine

Three Layers Air Bubble Film Machine

The Three Layers Air Bubble Film Machine, known as a plastic bubble film machine, is designed for the manufacturing of air bubble film. This equipment predominantly utilizes Low Density Polyethylene (LDPE) or recycled LDPE as its primary raw material. It is offered in multiple widths, including 1200mm, 1500mm, 2000mm, 2500mm, and 3000mm, and is capable of producing bubble film with two distinct layers. The machine supports various power configurations, such as 220V, 380V, 440V, or 480V, and provides a range of bubble film colors, including red, blue, and yellow. A significant aspect of the Three Layers Air Bubble Film Machine is its intuitive design, ensuring ease of use for operators.

Three Layers Air Bubble Film MachineTechnical Variables:

Model	KDPEG-1000	KDFPG-1200	KDPEG-1500
Raw Material	LDPE,recycle material,masterbatch and additives material
Screw Diameter	φ65mm+φ50mm	φ75mm+φ60mm	φ90mm+φ70mm
Bubble film Max. width	600mm	1200mm	1500mm
Bubble Film Layer	3 layers,4 layers,5 layers
Bubble Film Color	Transparent,Black,Red,White,blue…bag color changed by masterbatch
Output	55kg/h	70kg/h	90kg/h
Total power	75kw	82kw	98kw
L/D Ratio Of Screw	28：1	28：1	28：1
Water Consumption	0.5m3/h	0.5m3/h	0.5m3/h
Machine Weight	3.5	4.5	5
Power Voltage	220V,380V,440V(Customized based on request (For example: USA 480V 60Hz, Nigeria 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
Air Shaft Diameter	without paper core ,58mm,76mm
Machine Working Time	24 hours*7
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas

two layers air bubble film machines

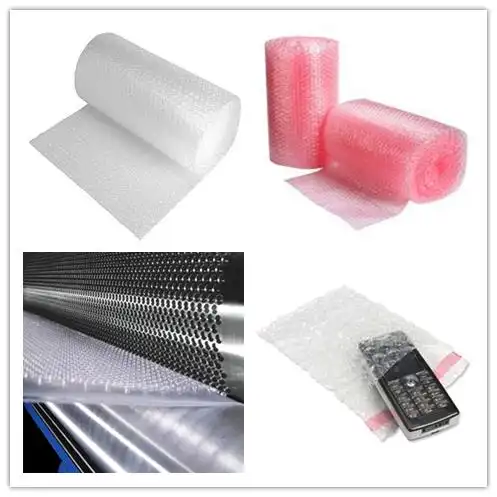

air bubble wrap film bubble bag

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

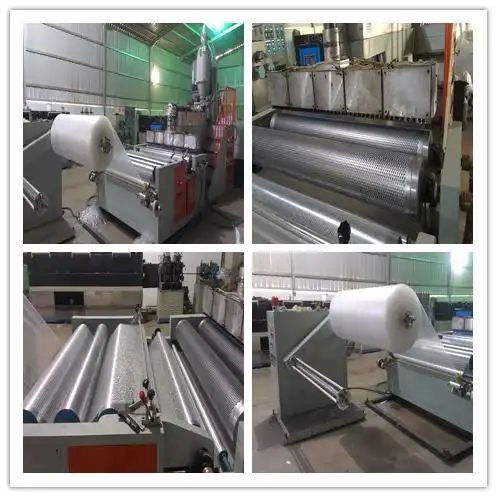

Bubble Film Machine Working in Customer Factory

two layers air bubble film machines

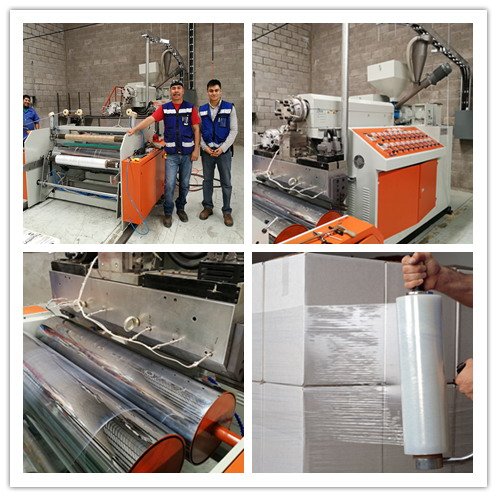

Install Strech Film Machine in Customer Factory

install machines in customers factory
