Rotary Die Dead Blown Film Extrusion

Rotary Die Dead Blown Film Extrusion

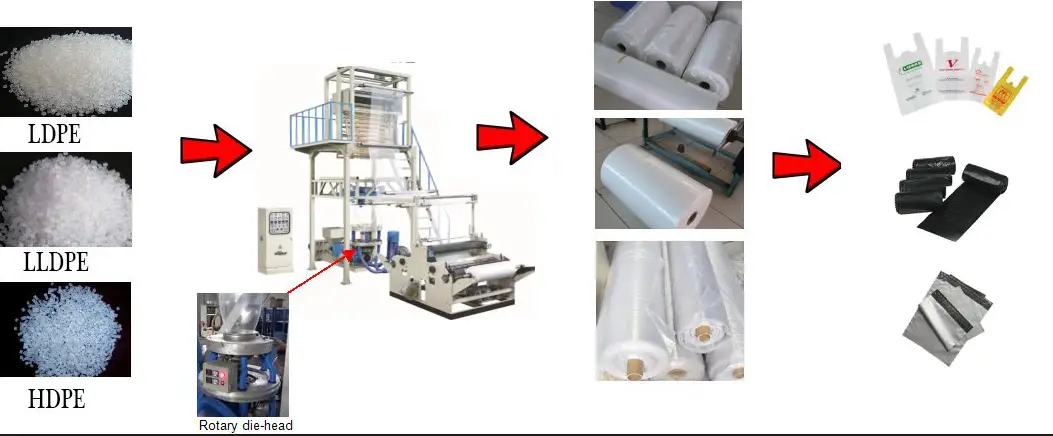

The Rotary Die Dead Blown Film Extrusion machine is engineered for the production of a diverse range of plastic films, including polyethylene variants such as HDPE, LDPE, and LLDPE. This machine consists of an extruder, cylinder, and screw rods constructed from high-quality alloy steel that has undergone precise nitriding to enhance durability and provide exceptional corrosion resistance. The specially designed screw enhances the efficiency of plasticization, thereby increasing production capacity. This equipment is primarily utilized for the manufacturing of plastic films, including LDPE and HDPE, which are frequently used in food packaging, clothing, garbage bags, and shopping bags.

Key Features:
– The main and traction motors are controlled by frequency inverters.
– Screw and barrel material: 38CrMoAl with nitrogen treatment.
– Gearbox: Equipped with HARD teeth gear surface, alloy piston, and high-precision grinding.

Rotary Die Dead Blown Film Extrusion

Optional Equipments:
1)Auto Loader
2)Air Compressor
3)Up and Down
4)Air Shaft
5)Masterbatch Dosing device
6)Automatic Winder Changer
7) Corona treatment

Model	SJ-B50	SJ-B55	SJ-B60	SJ-B65-1
Material	LDPE, LLDPE,HDPE,virgin raw material, recycled material, CaCO3 compound,masterbatch and additives material
Film Color	Transparent,Black,Red,White,blue…bag color changed by Masterbatch
Usage	Flexible packaging bags,T-shirt bag,Plastic Shopping Bag,trash bag,packing film,table cover,shrink film
Diameter of screw	φ50	φ55	φ60	φ65
Reduced diameter of film	100-600 mm	200-800 mm	300-1000 mm	400-1200 mm
One side film Thickness	0.01-0.10 mm
Max.capacity (Kg/h)	35	50	65	80
Ratio of Screw L/D	28:1	28:1	28:1	28:1
Screw material	38CrMoAl	38CrMoAl	38CrMoAl	38CrMoAl
Power of main motor(kw)	7.5-11	11-15	18.5-22	22
Power of Traction	1.1 kw	1.1 kw	1.5 kw	1.5 kw
Heating Power(kw)	11	13	19	21
Delivery Day	30-45 days	30-45 days	30-45 days	30-45 days
Machine size (m)	4.8×1.9×3.8	5.5×2.1×4.6	6.5×2.3×5.2	6.5×2.5×5.2
Weight(T)	1.5T	2T	2.3T	2.6T
Power Voltage	220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Nigeria 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
Material Core Diameter	76mm(3 inch)
Machine Working Time	24 hours * 7 days
Warranty	1 year
Optional Devices	Auto loader, masterbatch dosing system, rotary die head, bubble controller, corona treater, embossing roller, automatic winder, double winder
Technical Assistance	Engineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

Shipment

shipment of plastic bag machine

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).



instalment service

install machines in customer factory

Machine parts supplier

Our Main parts cooperator as following brand,but standard parts all made from China.

Material supplier

How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
